สถานที่กำเนิด: | จีน |
---|---|
ชื่อแบรนด์: | SHX |
ได้รับการรับรอง: | ISO9001:2015, CE |
หมายเลขรุ่น: | SHX-700 |
จำนวนสั่งซื้อขั้นต่ำ: | 1 ชุด |
ราคา: | negotiable |
รายละเอียดการบรรจุ: | การบรรจุส่งออกมาตรฐาน |
เวลาการส่งมอบ: | 30 วัน |
เงื่อนไขการชำระเงิน: | T/T, L/C |
สามารถในการผลิต: | 150 ชุดต่อปี |
Engine: | Cummins/Perkins/Volvo/Weichai/Yuchai/MTU | Alternator: | Leroy Somer/Stamford/Farrand/Marathon |
---|---|---|---|
Control panel: | Deep Sea/Smartgen | Cylinders: | 6 |
Fuel system: | High pressure common rail | Aspiration: | Turbocharged and aftercooled |
Voltage regulation: | AVR | Type: | Open frame/Silent type |

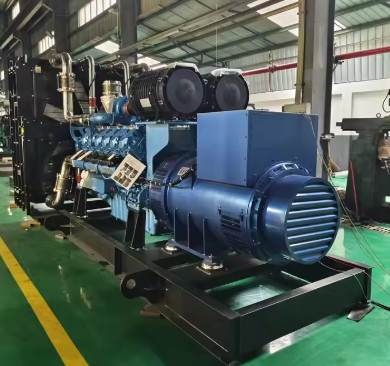

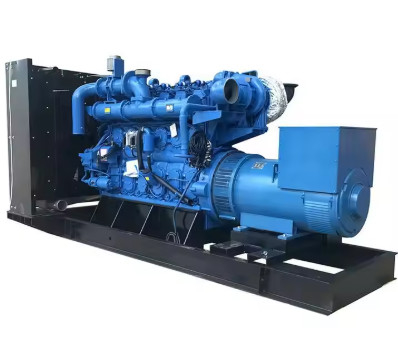

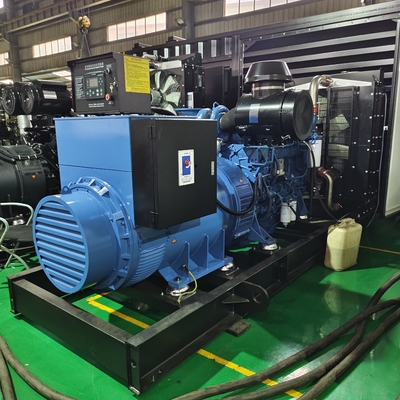

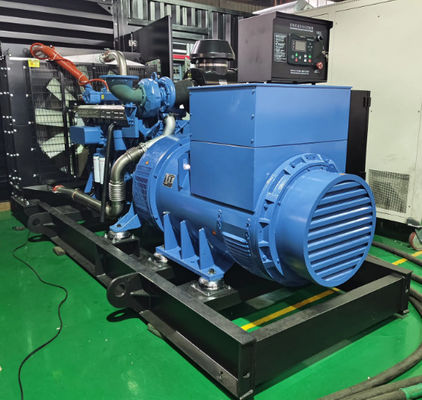

700KVA 560KW Auto Start High Power High Performance Gas Generator ISO9001& CE Certified Three Phase
Features
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
Genset Specification
Genset model | SHX-700 |
Genset rated power | 560KW//700KVA |
Rated voltage | 400/230V (adjustable) |
Rated current | |
Frequency | 50Hz/60Hz |
Power factor | 0.8 Lagging |
Connecting type | 3 phase 4 wire |
Cooling system | Closed cycle water-cooled with radiator |
Overall dimension (L×W×H) mm | |
Weight (kg) | |
Diesel Engine | |
Brand | Cummins |
Model | |
Engine type | |
Aspiration | Turbocharged and aftercooled |
Rotating speed | 1500RPM |
Engine cooling system | Water-cooled |
Fuel system | High pressure common rail |
Starting method | By 24V batteries |
Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
Displacement (L) | |
Bore×Stroke (mm) | |
Compression ratio | |
100% Load fuel consumption (L/h) | |
Lube capacity (L) | |
Alternator | |
Brand | Leroy Somer/Farrand/Stamford/Marathon |
Model | |
Excite type | Brushless self-excited AVR regulation |
Connecting type | 3 phase 4 pole |
Steady frequency change | 0.50% |
No load voltage | |
Steady voltage | |
Insulation class | Class H |
Protection grade | IP23 |
The components of the genset | |
(1) Diesel engine; (2) Alternator; (3) Radiator assembly; (4) Control system; (5) Base frame. |
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to certify the engine output and fuel consumption
in accordance with the site operating condition specified by purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and test procedure shall be transmitted to the
purchaser in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results are unsatisfactory or marginal. Any equipment
rejected shall be repaired or replaced to the purchaser’s satisfaction and tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or workmanship shall be replaced or repaired to the
purchasers satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator shall be assembled onto the base plate with a
ll auxiliaries, instruments and controls for a complete test of the generator set.
